·1/3” 工业级高清宽动态图像传感器
·850NM 大功率高亮点阵IR-LED
·100DB 动态范围
·90°广角（F=2.0 ）高清500万像素工业镜头
·30CM到无限远清晰成像
·1000TVL清晰度
·固定25帧，无拖影
·0.1Lux 超低照效果
·1W +1.5W超低功耗
·-30℃~+70℃宽温度范围稳定工作
·专业USB-IF WHQL ROHS CE（4KV/8KV）认证
·USB2.0高速传输
·低带宽需求（62%带宽需求，实现单个平台同时运行4个以上摄像机工作）
·UVC架构，兼容Windows XP&7&8.1&LINUX&MAC多种系统
·13万小时无故障寿命
·铝合金外壳高强度碰撞防护
·平台最低配置：CPU 1.7GHZ 512MB内存 40GB硬盘 XP SP2系统
|
信号格式 |
B/W（黑白） |
HDR（宽动态） |
REMARKS |
|||
|
扫描方式 |
Progressive scan |
|
||||
|
扫描频率(H) |
25HZ |
|
||||
|
扫描频率(V) |
50HZ/60HZ |
|
||||
|
图像感光片 |
1/3” 2M CMOS |
1/3” 3M HDR CMOS |
Aptina |
|||
|
有效像素 |
1920X1080 |
2048X1536 |
|
|||
|
像素点大小 |
2.2umX2.2um |
2.2umX2.2um |
|
|||
|
数据输出类型 |
Raw Data 10bits |
|
||||
|
输出格式 |
MPJG/YUY2 |
|
||||
|
分辨率和帧率 |
1920X1080 at 25fps 1280x960 at 25fps 1280x720 at 25fps 1024x768 at 25fps 800x600 at 25fps 640x480 at 25fps 352x288 at 25fps 320x240 at 25fps 160x120 at 25fps |
2048x1536 at 25fps 1920x1080 at 25fps 1600x1200 at 25fps 1280x1024 at 25fps 1280x960 at 25fps 1280x720 at 25fps 1024x768 at 25fps 800x600 at 25fps 640x480 at 25 fps 352x288 at 25fps 320x240 at 25fps 160x120 at 25fps |
MJPG |
|||
|
分辨率和帧率 |
1920x1080 at 5fps 1280x960 at 9fps 1280x720 at 9fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
2048x1536 at 3fps 1920x1080 at 5fps 1600x1200 at 5fps 1280x1024 at 8fps 1280x960 at 9fps 1280x720 at 9fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 25 fps 352x288 at 25fps 320x240 at 25fps 160x120 at 25fps |
YUY2 |
|||
|
信噪比 |
≥50dB |
≥50dB |
|
|||
|
动态范围 |
≥80dB |
≥100dB |
|
|||
|
产品识别码 |
1871&FF52 |
1871&FF92 |
|
|||
|
设备名称 |
ZM-KD2332IR |
ZM-KD2332RGB |
|
|||
|
最低照度 |
≥0.1LUX at F1.2 |
≥0.1LUX at F1.2 |
|
|||
|
连接接口 |
5-pin 1.25mm USB2.0 HIGH SPEED |
|
||||
|
电源 |
5V±5% |
|
||||
|
功率 |
IR- LED |
OFF |
Max 0.8W |
Max 1W |
|
|
|
ON |
Max 1.5W |
|
||||
|

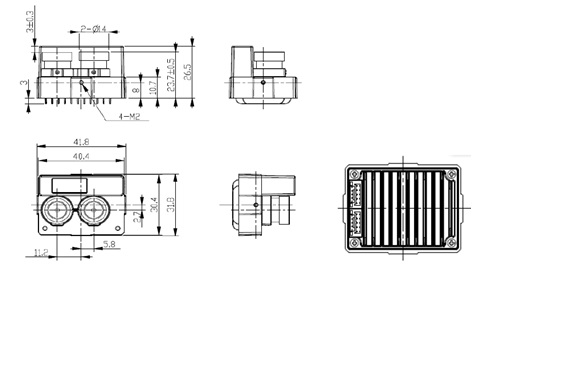

产品尺寸(mm) |
30X40 ±5% |
|
||||
|
重量 |
78g±5% |
|
||||
|
稳定工作温度（℃） |
-30~70 ℃ |
|
||||
|
储存温度&湿度(℃) |
-40~80 ℃/0~90RH |
|
||||
|
产品标准 |
USB-IF WHQL CE RoHS |
|
||||
|
可搭配镜头类型 |
M12(f=3.5MM) |
|
||||
|
默认镜头 |
H=75° V=62° D=90°(±4°) |
无畸变 |
||||
|
景深 |
40CM~∞ |
|
||||
|
支持系统 |
Windows XP sp2/vista/seven/8.1/10/Mac/ linux2.6.2(include UVC ) |
|
||||
|
USB接口定义 |
1 |
5V |
USB POWER |
|
||
|
2 |
DM |
- |
D- |
|||
|
3 |
DP |
- |
D+ |
|||
|
4 |
GND |
- |
DGND |
|||
|
5 |
COVER |
- |
屏蔽 |
|||
