Product feature(产品特性)
·1/3” 工业级高清宽动态图像传感器
·850NM 大功率高亮点阵IR-LED
·100DB 动态范围
·90°广角（F=2.0 ）高清500万像素工业镜头
·30CM到无限远清晰成像
·1000TVL清晰度
·固定25帧，无拖影
·0.1Lux 超低照效果
·1W +1.5W超低功耗
·-30℃~+70℃宽温度范围稳定工作
·专业USB-IF WHQL ROHS CE（4KV/8KV）认证
·USB2.0高速传输
·低带宽需求（62%带宽需求，实现单个平台同时运行4个以上摄像机工作）
·UVC架构，兼容Windows XP&7&8.1&LINUX&MAC多种系统
·13万小时无故障寿命
·铝合金外壳高强度碰撞防护
·平台最低配置：CPU 1.7GHZ 512MB内存 40GB硬盘 XP SP2系统|
Signal |
IR |
HDR |
REMARKS |
|||
|
Scanning System（扫描方式） |
Progressive scan |
|
||||
|
Scanning Frequency(H)（扫描频率） |
30HZ |
25HZ |
|
|||
|
Scanning Frequency(V) |
50HZ |
50HZ |
|
|||
|
Image Sensor（图像感光片） |
1/3” 1.3M CMOS |
1/3” 1.3M CMOS |
Aptina |
|||
|
Effective Pixels（有效像素） |
1280X960 |
1280x960 |
|
|||
|
Pixel size（像素点大小） |
3.75umX3.75um |
3.75umX3.75um |
|
|||
|
Image sensor Data output（数据输出类型） |
Raw Data 10bits |
|
||||
|
Video output（输出格式） |
MPJG/YUY2 |
|
||||
|
Maximum Frame Rates （分辨率和帧率）
|
1280x960 at 25fps 1280x720 at 25fps 1024x768 at 25fps 800x600 at 25fps 640x480 at 25fps 352x288 at 25fps 320x240 at 25fps 160x120 at 25fps |
1280x960 at 25fps 1280x720 at 25fps 1024x768 at 25fps 800x600 at 25fps 640x480 at 25 fps 352x288 at 25fps 320x240 at 25fps 160x120 at 25fps |
MJPG |
|||
|
Maximum Frame Rates （分辨率和帧率）
|
1280x960 at 9fps 1280x720 at 9fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
1280x960 at 9fps 1280x720 at 9fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
YUY2 |
|||
|
VID&PID(公司&产品识别码) |
1871&FF20 |
1871&FF90 |
|
|||
|
SNR max（信噪比） |
≥50dB |
≥50dB |
|
|||
|
Dynamic range（动态范围） |
≥80dB |
≥100dB |
|
|||
|
Min. Illumination（最低照度） |
≥0.1LUX at F1.2 |
≥0.1LUX at F1.2 |
NO LED |
|||
|
Digital interface（连接接口) |
5-pin 1.25mm USB2.0 |
|
||||
|
Transfer rates（接口速度） |
480MB/S |
|
||||
|
Power requirements（电源） |
5V±5% |
|
||||
|
Power Consumption （功率） |
IR- LED |
OFF |
Max 0.6W |
Max 1W |
|
|
|
ON |
Max 1.5W |
|
||||
|
IR-LED Wavelength(红外灯光谱) |
850nm |
|
||||
|

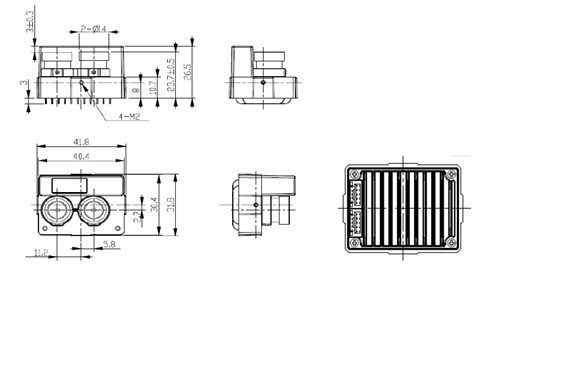

Dimensions(PCBA)（PCBA尺寸）mm |
28x38 ±5% |
|
||||
|
Weight（重量） |
78g±5% |
|
||||
|
-30~70 ℃ |
|
|||||
|
Storage temperature(℃)（储存温度&湿度） |
-40~80 ℃/0~90RH |
|
||||
|
Compliance（产品标准） |
USB-IF WHQL CE RoHS |
|
||||
|
Lens Mount（可搭配镜头类型） |
M12(f=3.5MM) |
|
||||
|
Lens view （默认镜头） |
M12/90° |
|
||||
|
Warranty(质保期) |
3 years |
|
||||
|
OS（支持系统） |
Windows XP /vista/seven/8.1/Mac linux2.6.2(include UVC ) |
|
||||
|
USB CONN（USB接口定义） |
1 |
5V |
USB POWER |
500mA max |
||
|
2 |
DM |
- |
D- |
|||
|
3 |
DP |
- |
D+ |
|||
|
4 |
GND |
- |
DGND |
|||
|
5 |
COVER |
- |
shield |
|||
