·1/2.7” 工业级高清宽动态图像传感器
·850NM 大功率高亮点阵IR-LED
·95DB 动态范围
·90°广角（F=2.0 ）高清500万像素工业镜头
·30CM到无限远清晰成像
·1000TVL清晰度
·固定30帧，无拖影
·0.1Lux 超低照效果
·0.8W +1.2W超低功耗
·-30℃~+70℃宽温度范围稳定工作
·专业USB-IF WHQL ROHS CE（4KV/8KV）认证
·USB2.0高速传输
·低带宽需求（62%带宽需求，实现单个平台同时运行4个以上摄像机工作）
·UVC架构，兼容Windows XP&7&8.1&LINUX&MAC多种系统
·13万小时无故障寿命
·平台最低配置：CPU 1.7GHZ 512MB内存 40GB硬盘 XP SP2系统|
Signal |
IR（红外） |
HDR（彩色宽动态） |
REMARKS |
|||
|
扫描方式 |
Progressive scan |
|
||||
|
扫描频率(H) |
25HZ |
|
||||
|
扫描频率(V) |
50HZ |
|
||||
|
图像感光片 |
1/2.7” 1080P |
1/2.7” 1080P |
|
|||
|
有效像素 |
1920X1080 |
1920X1080 |
|
|||
|
像素点大小 |
3.0umx3.0um |
3.0umx3.0um |
|
|||
|
数据输出类型 |
Raw Data 10bits |
|
||||
|
输出格式 |
MPJG/YUY2 |
|
||||
|
分辨率和帧率 |
1920X1080 at30 fps 1280x960at30 fps 1280x720 at 30 fps 1024x768at 30 fps 800x600 at 30fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
1920X1080 at 30 fps 1280x960 at 30 fps 1280x720 at 30 fps 1024x768 at 30fps 800x600 at 30fps 640x480 at 30FPS 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
MJPG |
|||
|
分辨率和帧率 |
1920X1080at 5fps 1280x960 at 9fps 1280x720 at 9fps 1024x768 at 15fps 800x600 at 20fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
1920X1080at 5fps 1280x960 at 9fps 1280x720 at 9fps 1024x768 at 15fps 800x600 at 20fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
YUY2 |
|||
|
信噪比 |
≥50dB |
≥50dB |
|
|||
|
动态范围 |
≥70dB |
≥90dB |
|
|||
|
产品识别码 |
1871&FF60 |
1871&FF50 |
|
|||
|
设备名称 |
ZM-MDW172IR |
ZM-MDW172C |
|
|||
|
最低照度 |
≥0.1LUX at F1.2 |
≥0.1LUX at F1.2 |
|
|||
|
连接接口 |
5-pin 1.25mm USB2.0 HIGH SPEED |
卡扣 |
||||
|
电源 |
5V±5% |
|
||||
|
功率 |
IR- LED |
OFF |
Max 0.5W |
Max 0.75W |
|
|
|
ON |
Max 1W |
|
||||
|
红外灯光谱 |
850nm |
|
||||
|

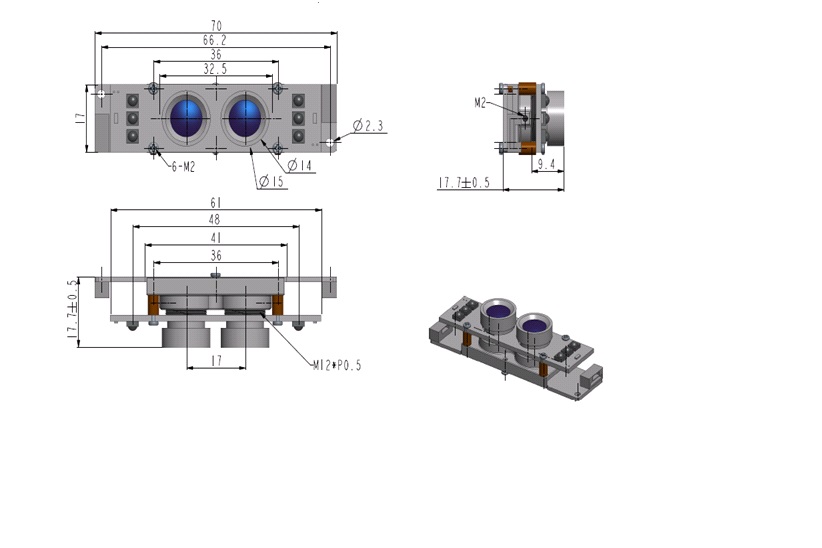

产品尺寸(mm) |
17X70X17.7 ±5% |
|
||||
|
重量 |
52g±5% |
|
||||
|
稳定工作温度（℃） |
-30~70 ℃ |
|
||||
|
储存温度&湿度(℃) |
-40~80 ℃/0~90RH |
|
||||
|
产品标准 |
USB-IF WHQL CE RoHS |
|
||||
|
可搭配镜头类型 |
M12(f=3.5MM) |
|
||||
|
默认镜头 |
H=82° V=58° D=90°(±4°) |
无畸变 |
||||
|
景深 |
30CM~∞ |
|
||||
|
支持系统 |
Windows XP sp2/vista/seven/8.1/10/Mac/ linux2.6.2(include UVC ) |
|
||||
|
USB接口定义 |
1 |
5V |
USB POWER |
|
||
|
2 |
DM |
- |
D- |
|||
|
3 |
DP |
- |
D+ |
|||
|
4 |
GND |
- |
DGND |
|||
|
5 |
COVER |
- |
shield |
|||
